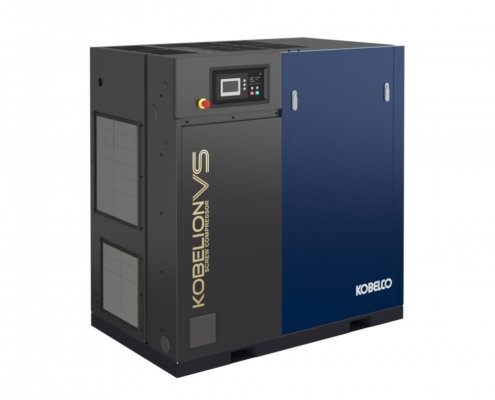

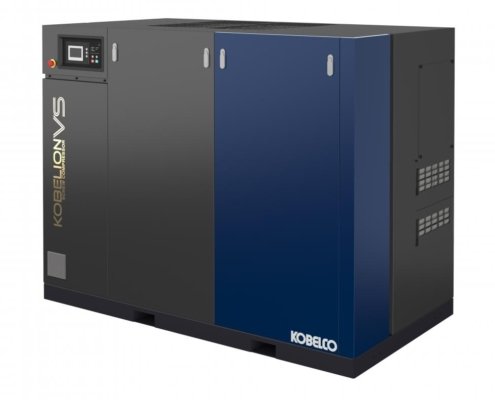

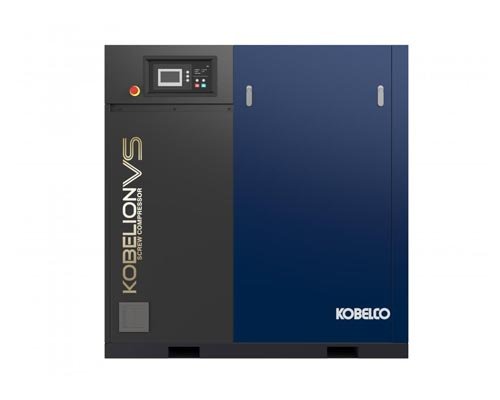

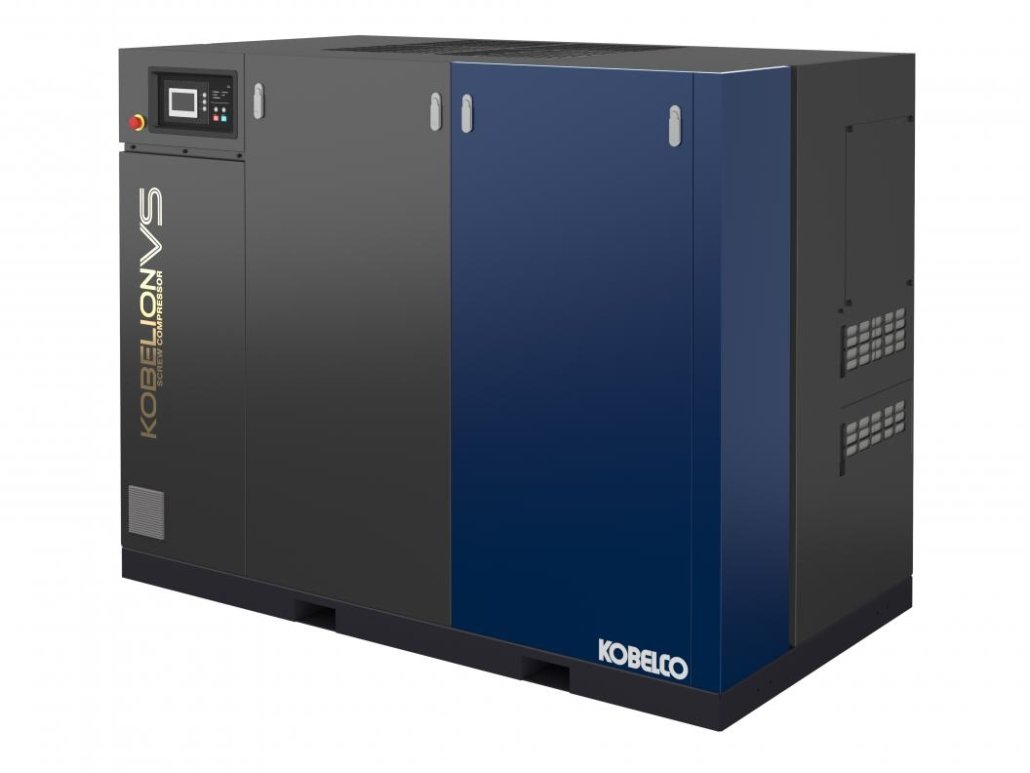

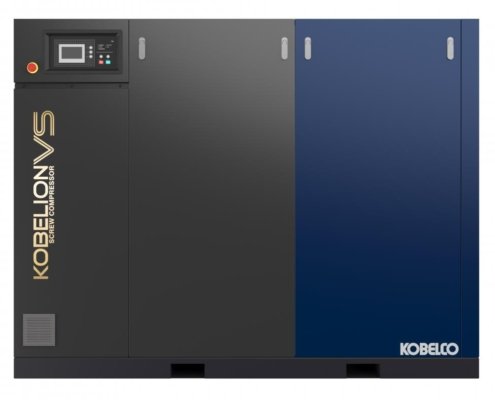

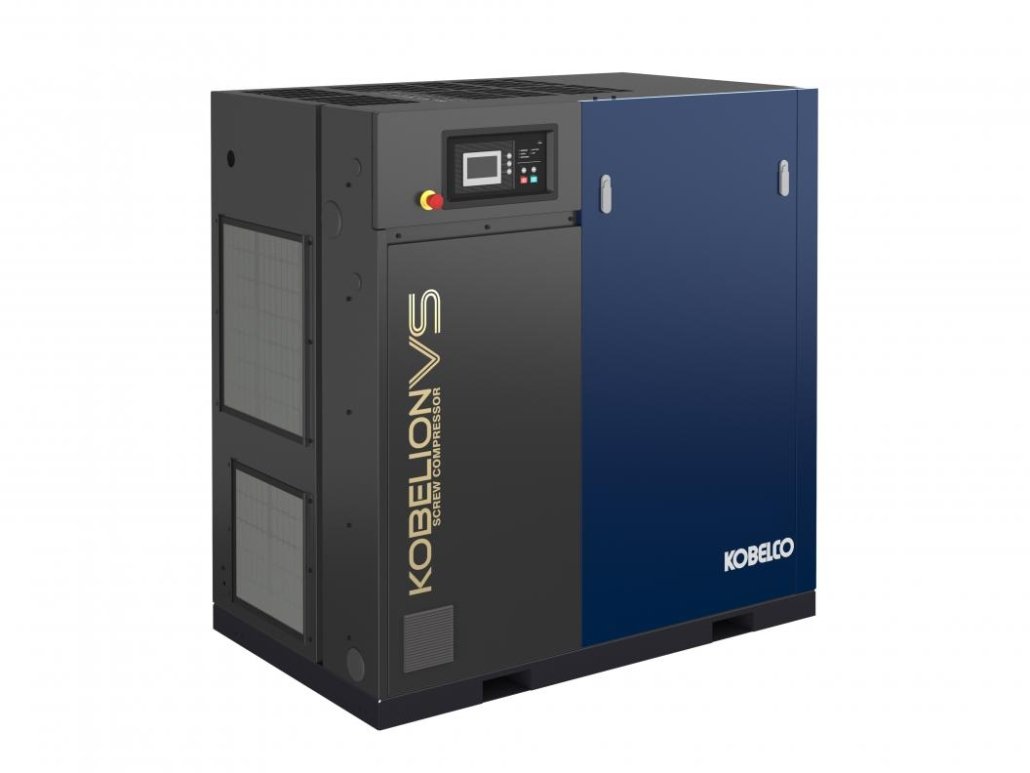

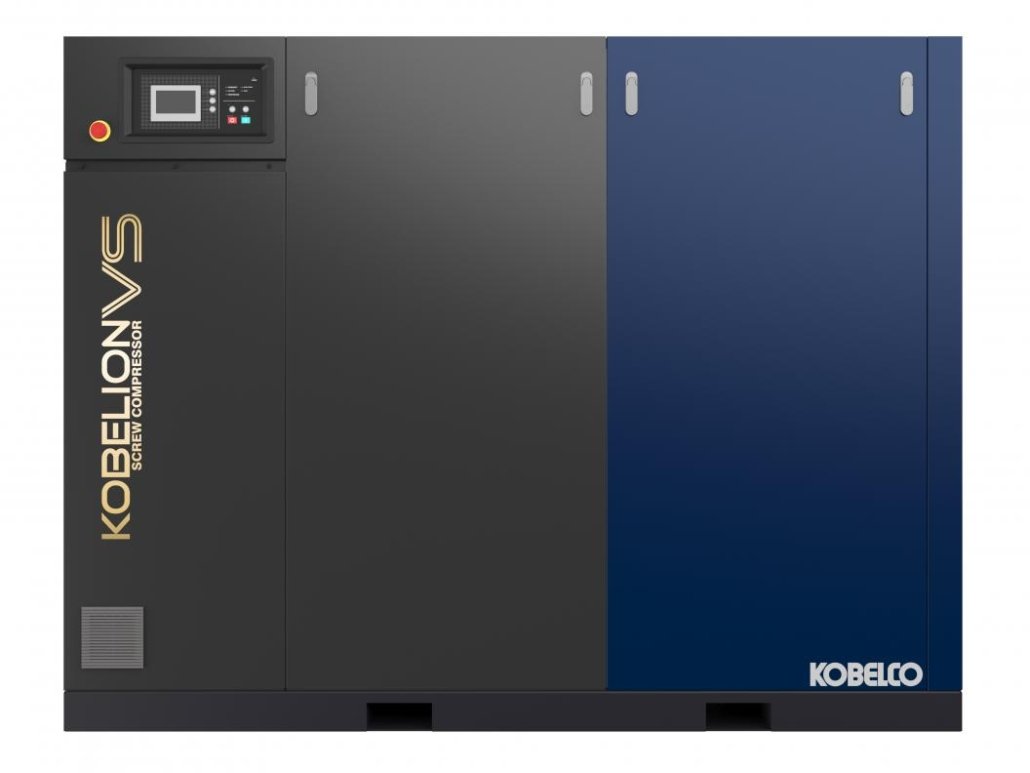

The direct-coupled gear-driven inverter models are equipped with a super premium efficiency IE4 induction motor, which has high energy-saving performance and a wide pressure range to meet the needs of customers.
- Motor output : 75-90kW
- Discharge air flow : 12.9-20.2m3/min
Features

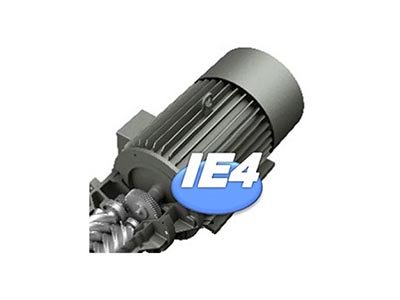

Super premium efficiency motor (IE4)
Equipped with a super-premium efficiency IE4 induction motor, the energy-saving performance reaches the highest level in the series.

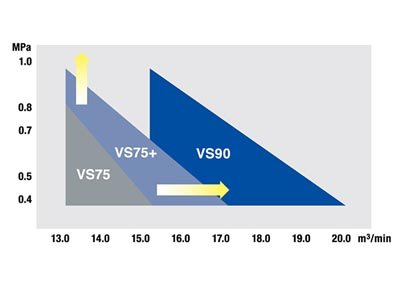

New Wide Range Control
The selection of the optimum airend and the direct gear structure with the motor realize high air volume, and at low pressure setting, the wide range control function covers the air volume range of machines one size larger. The optimal model can be selected for your low-pressure needs.

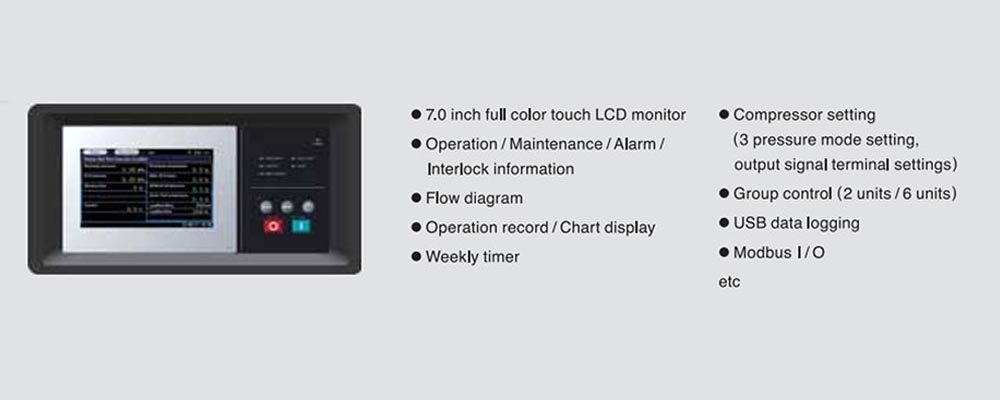

NGSC-700 controller as standard

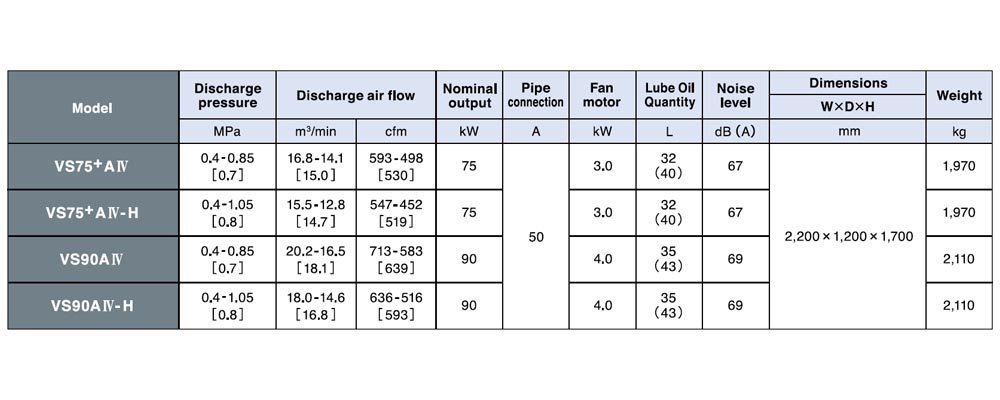

Specification
VS series [Induction motor Inverter model / Air cooled ]
Main motor: 2pole, TEFC induction motor, IE4, Class F, Inverter drive, Electrical spec: 380/415V, 50Hz. The Maximum pressure for constant pressure control is up to 1.05MPa. ( ) for initial charge.
